Advance 71A552A1-500D

70 Watt - Pulse Start - Metal Halide Ballast - ANSI M139 - 120/277/347 Volt - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Film Capacitor, Ignitor, and Bracket Kit

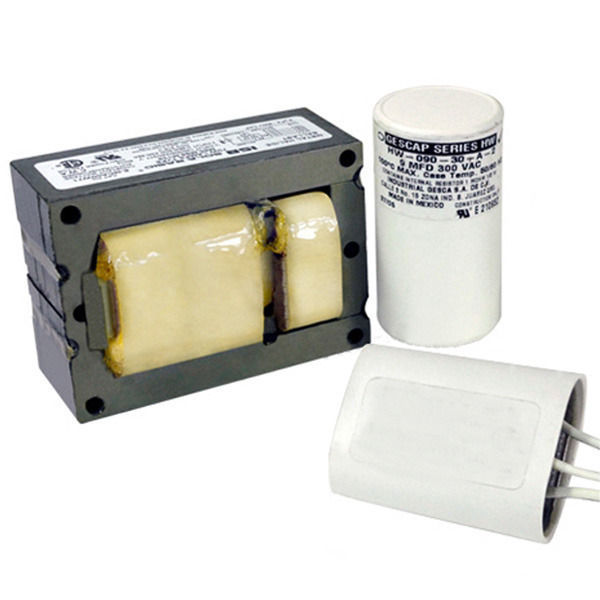

The Advance 71A552A1-500D metal halide ballast operates on 120, 277, or 347 volt systems. For use with 70 watt lamps, this magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 221 degrees F makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry film capacitor, ignitor, and bracket kit.

Stock Code: BA-71A52A1500D


1 - 5
$219.91  ea

6 +
$192.43  ea

Quantity:




Brochures & Spec Sheets

  Advance HID Brochure
  71A52A1500D Spec Sheet

  2 Year Warranty

Specifications

Stock Code:  BA-71A52A1500D
Part No.:  71A552A1-500D
Voltage:  120/277/347
Ballast Type:  HX-HPF
Width:  5.1 in.
Operates:  MH70/PS
Start Temp. (Max):  221 Deg. F
Start Method:  Probe Start
Weight:  5.5 lb.
UL Listed:  Yes


Brand:  Advance
UPC:  781087061411
ANSI Code:  M139
Length:  3.95 in.
Height:  2.9 in.
Start Temp. (Min):  -22 Deg. F
Power Factor:  90%
Type:  Metal Halide
CSA Listed:  Yes
Warranty:  2 Years
