Fulham HH-HPS-MLT4-100-D - 100 Watt - High Pressure Sodium Ballast
ANSI S54 - 4 Tap - Power Factor 90% - Max. Temp. Rating 221 Deg. F - Includes Dry Capacitor, Ignitor, and Bracket Kit
SKU:
BF-HHHPSMLT4100D
Details
Description

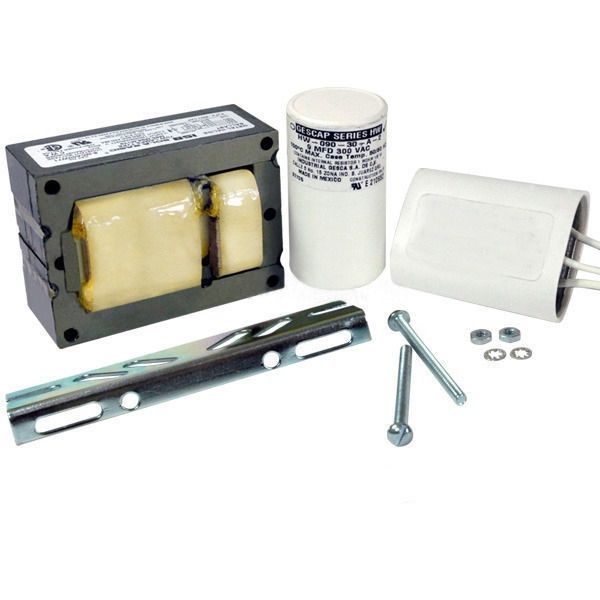

Driving 100-watt lamps, the Fulham HH-HPS-MLT4-100-D high pressure sodium ballast features a 4-tap voltage input for compatibility from 120 to 277 volts. This magnetic HID ballast boasts a high power factor of 90%, ensuring maximum efficiency. A temperature rating of 221-degrees Fahrenheit makes the ballast suitable for mounting in warehouses and manufacturing facilities where high heat may be an issue. Includes dry capacitor, ignitor, and bracket kit.
Brochures & Spec Sheets
Product Attributes
Brand | Fulham |
---|---|
MPN (Part No.) | HHHPSMLT4100D |
UPC | 872180108575 |
Lighting Technology | High Pressure Sodium |
ANSI Code | S54 |
Family | High Horse |
Wattage | 100 Watt |
Voltage | 120/208/240 |
Ballast Type | HX-HPF |
Mounting | Hardware Included |
Operates | LU100 |
Start Temp. (Min) | -20 Deg. F |
---|---|
Start Temp. (Max) | 221 Deg. F |
Power Factor | 90% |
Type | High Pressure Sodium |
UL Recognized | Yes |
Length | 3.94 in. |
Height | 2.79 in. |
Width | 3.35 in. |
Weight | 6.61 lb. |
Warranty | 2 Years |
