Lutron Maestro MS-VPS5M-LA - Light Almond - Passive Infrared (PIR)
Vacancy Sensor - 5 Amp Max. - 120 Volt
SKU:
LUT-MSVPS5MLA
Details
Description

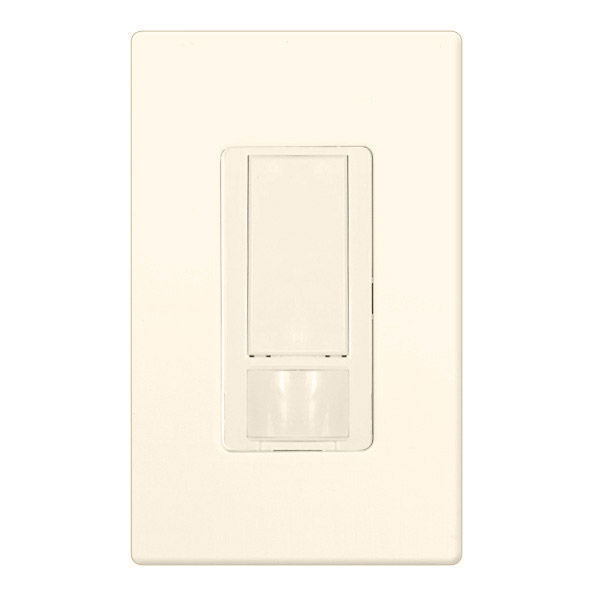

The Lutron Maestro MS-VPS5M-LA passive infrared vacancy sensor saves on energy consumption by automatically turning the lights off when a room is unoccupied. This light almond finished Maestro vacancy sensor is ideal for small rooms such as bedrooms, kids' rooms, or TV rooms. Companion switch MA-AS, MSC-AS, MA-AS-277, or MSC-AS-277 (sold separately) is required for multi-location installations.
- Features exclusive XCT technology for fine motion detection within a 180-degree field-of-view
- Manually turn lights on with tap switch/Passive infrared sensor automatically turns lights off
- Operates a maximum of 5 amps at 120 volts on all lighting loads
- Up to 9 companion switches may be connected
- Features a tamper-resistant sensor lens
- Neutral wire is not required
Brochures & Spec Sheets
Product Attributes
Brand | Lutron |
---|---|
MPN (Part No.) | MS-VPS5M-LA |
UPC | 27557983709 |
Family | Maestro |
CA Title 24 | Compliant |
Color | Light Almond |
Voltage | 120 |
Amperage | 5 Amps |
Connection | Ground |
Coverage | 900 sq. ft. |
Field of View | 180 Deg. |
Load Type | CFL/ELV/Fans/FL/Halogen/Incandescent/LED/MLV |
Motion Detection | PIR (Passive Infrared) |
---|---|
Motion Sensor Type | Vacancy |
Operation | Multi-Location/Single Pole |
Sold Separately | Wall Plate |
Switch Type | Tap Switch |
Time Delay | 1, 5, 15, or 30 min. |
CSA Listed | No |
Height | 4.7 in. |
Width | 2.9 in. |
Warranty | 5-Year Limited |
Case Quantity | 24 |
