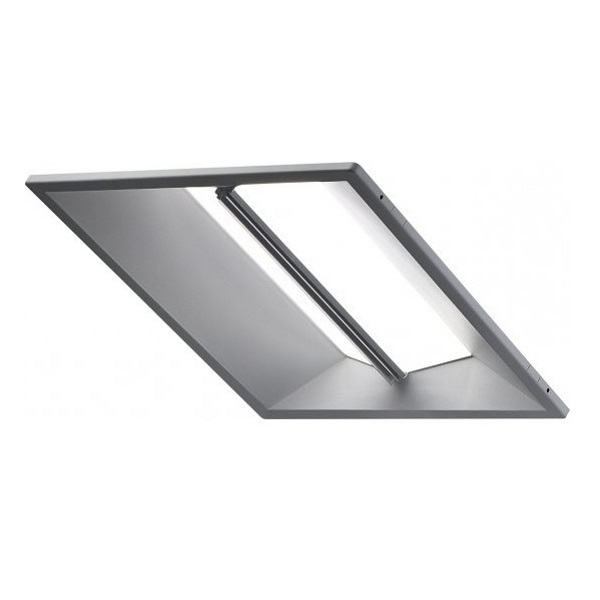

2 x 2 LED Recessed Troffer - 3200 Lumens
32 Watt - 3500 Kelvin - 90 CRI - 120-277 Volt - 5 Year Warranty - Cree CR22-32L-35K-10V
No pricing information found.
Details
Description
Look no further for LED fixtures with Cree's new line of CR Series LED troffers. The Cree CR22-32L-35K-10V 2 x 2 32-watt LED troffer has TrueWhite technology that produces high-quality white light illuminating a warm 3500 Kelvin, color temperature while maintaining a high efficacy of 3,200 lumens. Made with a 22-gauge steel housing, the room-side heat sink enables the LEDs to consistently run cooler, boost lifetime, efficacy, and color consistency by controlling the temperature environment thus moving heat away from the LEDs. The lens is connected with an upward facing LED strip, while the lower reflector balances the brightness of the lens from the ceiling, eliminating the view of LEDs.
- High CRI of 90
- Cree TrueWhite technology delivers a high CRI, amazing light characteristics, and lifelong color consistency
- Individual fixtures may be mounted end to end for continuous row
- Continuous dimming to 5 percent with 0-10V DC control protocol
- T-bar clips for mounting support wires are included
Brochures & Spec Sheets
IES Files
Product Attributes
Brand | Cree |
---|---|
MPN (Part No.) | CR22-32L-35K-10V |
UPC | 813959012570 |
Lighting Technology | LED |
Family | CR Series |
Dimmable | Yes |
DLC Listed | Yes |
CRI | High CRI (90 and Up) |
Color | Halogen Color |
Color Temperature | 3500 Kelvin |
Life Hours | 75,000 |
Wattage | 32 Watt |
Lumens | 3,200 |
---|---|
Voltage | 120/208/240/277 |
Finish | White |
Housing | Steel |
Mounting | Recessed |
Lens | Diffuser |
CSA Listed | No |
Length | 23.7 in. |
Height | 4.75 in. |
Width | 23.7 in. |
Weight | 12 lbs. |
Warranty | 5-Year Limited |
